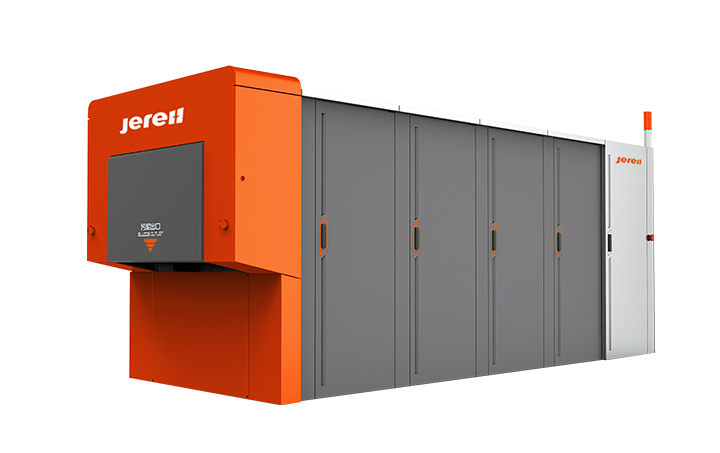

Jereh Enviro high pressure belt filter press by Jerry environmental protection independent research and development, is a combination of high pressure diaphragm filter press and ordinary belt filter characteristics of high press dehydration equipment. The equipment is mainly used in municipal sewage, food, beverage, chemical, leather, paper making, printing and dyeing, pharmaceutical, coal chemical, mineral processing and other industries sludge reduction. For the sludge with water content of about 80%, the upper and lower two tensioning filter belts entrap the sludge layer, which is s-shaped from a series of regular arrangement of roller cylinders, relying on the tension provided by the plate chain to form the press of sludge, reducing the sludge water content to 60%-65%, to achieve the purpose of deep dehydration.
Simple daily maintenance, can realize 24 hours continuous operation.
Only need to change different filter belt, can deal with different properties of sludge.
Pressure filter system is equipped with upper and lower filter belt, high pressure plate chain alone supporting deviation correction device, can be corrected in real time, the system does not need manual assistance in the process of operation.
The equipment adopts modular integrated design, the whole machine layout is simple, covers a small area, convenient transportation. Strong crushing force：Compared with ordinary belt machine, the crushing force is increased by about 10 times, and the moisture content is effectively reduced to 60%-65%.
| Model | DYQ1000 III | DYQ1500 III | DYQ2000 III | DYQ2500 III |
| Belt Width（mm） | 1000 | 1500 | 2000 | 2500 |
| Belt speed(m/min) | 1~5 | 1~5 | 1~5 | 1~5 |
| Washing Water Volume(m³/h) | 6~12 | 8~16 | 10~20 | 12~24 |
| Sludge Treatment Capacity(kg/h) | 2000~3000 | 3000~4000 | 4000~6000 | 6000~8000 |
| Dehydration Pressure(Mpa) | 0.5~1 | 0.5~1 | 0.5~1 | 0.5~1 |
| Installed Power(kW) | 9 | 12 | 16 | 20 |
